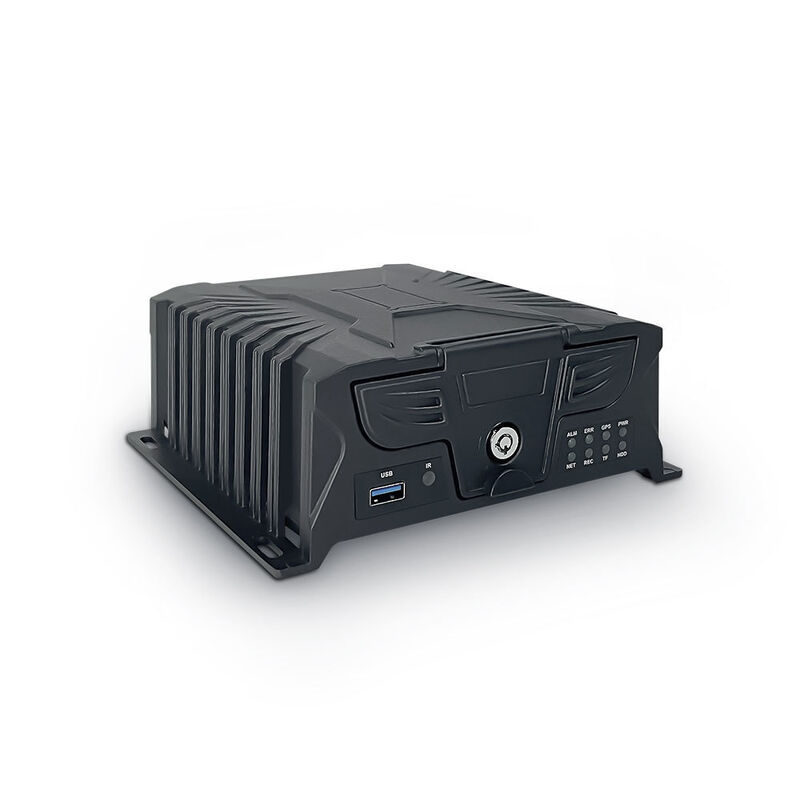

4G Mobile DVR Designed for Passenger Coaches Buses Taxis and Dangerous Goods Vehicles with Stable Performance and Easy Operation
Подробная информация о продукте:
| Место происхождения: | Шэньчжэнь |
| Фирменное наименование: | Oxiang /OEM |
| Сертификация: | CE.RoHS,FCC |
| Номер модели: | MD264 |
|
Подробная информация |
|||
| Сеть: | Wi-Fi 2,4 ГГц (IEEE 802.11 b/g/n) | Красный светодиод мигает: | Питание в порядке, ожидание подключения к Wi-Fi |
|---|---|---|---|
| Тип мощности: | Перезаряжаемая батарея 18650 или жесткий провод AC12V-24V | ПОТРЕБЛЕНИЕ: | Рабочий режим: 170 мА Режим ожидания: 200 мкА |
| Масса: | 600 г. | Диапазон пикапа: | 5 метров |
| Рабочая влажность: | < 95% | Функция сообщения: | Сообщение поддержек покидая функция |
| Затвор: | 1/25~1/100 000 в секунду | ОТНОСИТЕЛЬНАЯ ВЛАЖНОСТЬ: | 85% без конденсации |
| ИК -расстояние: | 3 метра | Датчик изображения: | SC2335/SC233A |
| Горизонтальный угол: | горизонтальный угол 140 | Угол обнаружения: | 110° |
| Функция: | 3G/4G/GPS/WIFI | Власть: | DC12V/2A |
| Установка изображения: | Поддержка HD/SD Поддержка зеркала | Водонепроницаемая скорость: | IP55 |
| Камера: | 1 мегапиксель, OV9732 (широкий угол 125°) | Широкий угол: | 130 градусов |
| Размер экрана: | 7 дюймов | Разрешение входа камеры: | AHD1080P/720P/CVBS |
| Тип датчика: | Видео- считать, точность 98% | Размер хоста: | 200(Д) x187(Ш) x62(В) мм |
| Сжатие: | H.265 | Вход напряжения: | адаптироваться к сверхширокому диапазону напряжения от 8 до 36 В |
| Поддержка программного обеспечения: | CMSV6 и наша частная платформа | Гарантия: | 12 месяцев |
| SDK: | Бесплатный SDK для второй разработки | Загрузка WIFI: | Поддерживать |
| Операция интерфейс: | Графический интерфейс пользователя (экранное меню) | Кастомизация: | Да |
| Водонепроницаемый: | IP69K | Шокопродась: | Двойная антивибрация |
| Функции: | Счетчик людей, 3G, GPS, G-сенсор, ИБП | ||
| Выделить: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
Характер продукции
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
![]()
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection

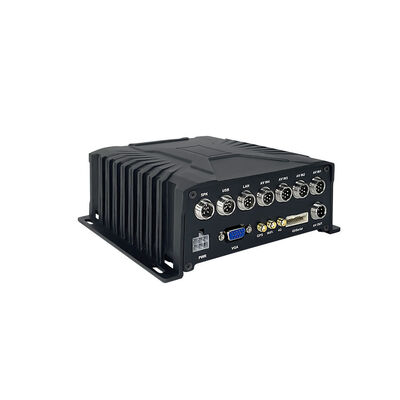

- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
