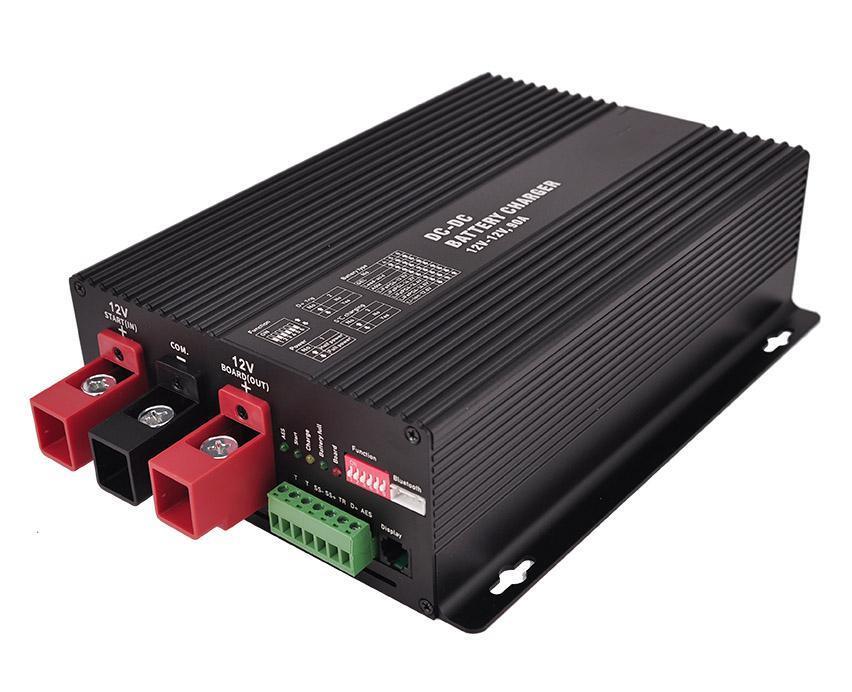

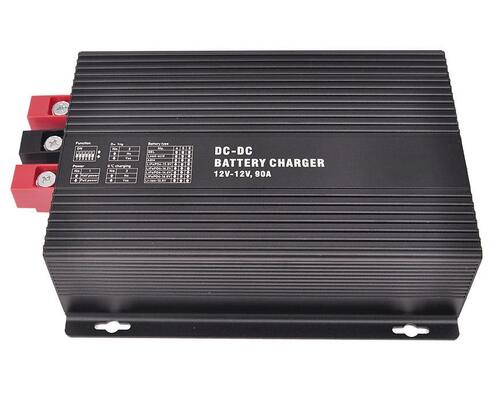

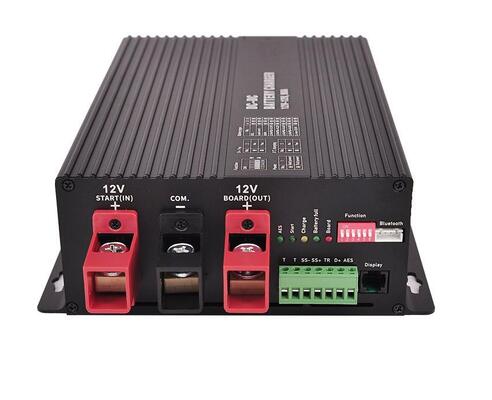

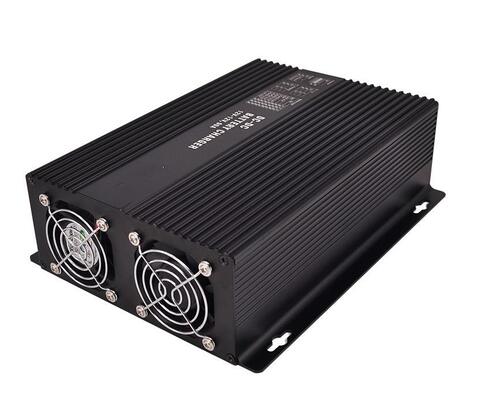

12V DC-DC LiFePO4 Lithium-ion Battery RV Charging Controller
Подробная информация о продукте:
| Место происхождения: | Шэньчжэнь |
| Фирменное наименование: | Oxiang /OEM |
| Сертификация: | CE.RoHS,FCC |
| Номер модели: | B2B1290 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт. |
|---|---|
| Цена: | Negotiate |
| Упаковывая детали: | Подарочная коробка |
| Время доставки: | Образец: около 3-5 рабочих дней после оплаты |
| Условия оплаты: | Т/Т, Западное соединение, ПайПал, кредитная карта |
| Поставка способности: | 10000 шт/месяц |
|
Подробная информация |
|||
| Совместимость типов батарей: | Свинцово-кислотные, AGM, гель, литиевые | тип: | МПРТ |
|---|---|---|---|
| Выходное напряжение: | 12 В/24 В постоянного тока | Выходная мощность: | 500 Вт |
| Рабочая температура: | от -10°С до 50°С | Напряжение: | 12-50 В |
| Pvmax: | 685w | Сила DC максимальная: | 390 Вт |
| Функция: | Управление через приложение | Холодильник: | 20А |
| Зарядное устройство: | заряжатель солнечной батареи | Розетка стандартная: | ЕС/AU/UK/US |
| Рабочая температура: | -20-50 ℃ | Сертификаты: | CE, РоХС |
| Вольт: | 12 В | ||
| Выделить: | 12V LiFePO4 battery charger,RV DC-DC charging controller,lithium-ion battery charging controller |
||
Характер продукции
INSTALLATION ATTENTION
• Do not expose the DC/DC charge tr o rain or snow.
• Do not use the DC/DC charger if it has received a sharp blow, been dropped,
has cracks or openings in the case, or is damaged in any other way.
• Do not install the charger near a heat source.
• This charger should not be installed in an airtight or poorly ventilated area.
• Do not attempt to open the DC/DC charger. There are no user serviceable parts
except for user replaceable fuses.
• Do not use the DC/DC charger with damaged cables.
• It is strictly forbidden to disassemble the charger and/or modify the housing in
any way.
CONNECTIONS ATTENTION
• It is important to choose the correct battery type, a wrong choice can cause irreversible
damage, The LITHIUM charging cycle is only compatible with LiFePo4 batteries with
integrated BMS (Battery Management System).
Maintenance
• If necessary, the fuses must be replaced by identical products.
• This charger cannot be disassembled and the electronic board is inaccessible.
• Therefore, with the exception of the fuses, all on-site maintenance is prohibited.
• Disconnect the DC power supply before servicing, cleaning or working on
circuits connected to the DC/DC booster.
• Once disconnected, isolate the battery connection terminals.
• It is important to ensure that the area around the battery is well ventilated.
• It is important to ensure that the battery voltage matches the output voltage
• Always use ungrounded batteries. If necessary, the battery grounding connection
should be made last.
To prevent overheating, make sure the connections are properly tightened
